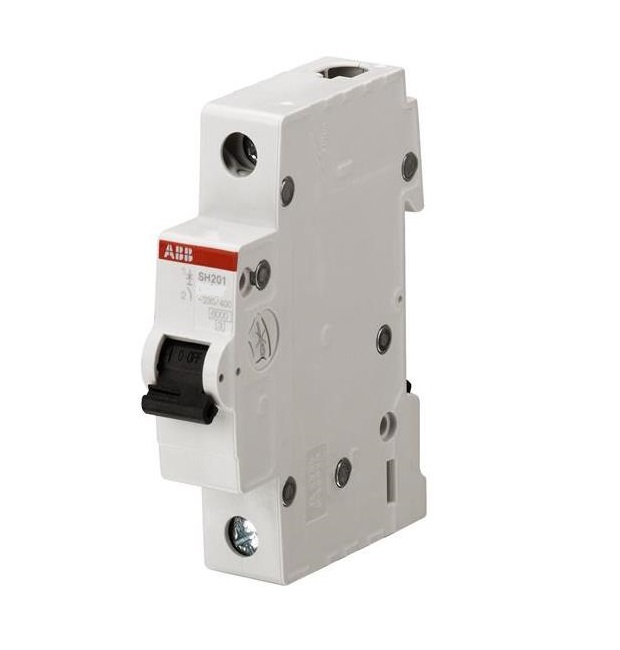

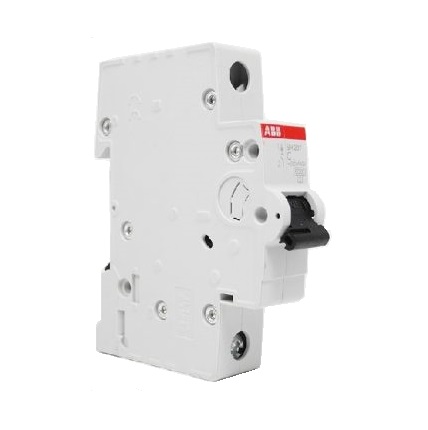

ABB Single Pole MCB Breaker(6,10,15,20,25,30,40,50,63Amp.) in Pakistan

• Product: 1 pole mcb (miniature circuit breaker)
• Brand: ABB
• Manufactured: Germany
• Model: SH 201
• Standards: IEC/EN 60898
• Number of pole: 1
• Rated Current: optional
• Rated operational voltage: acc. to IEC 60898 230 / 400 V AC
• Rated Frequency: 50 – 60 Hz
• Rated Short-Circuit Capacity: (230 / 400 V AC) 6 kA
• Actuator Type: toggle
• Actuator Marking: I / O
• Degree of Protection: IP20
• Electrical Endurance: 10000 AC cycle
• Mechanical Endurance: 20000 cycle
• Terminals type: Screw Terminals
• Mounting: 35mm DIN rial
• Product Net Width: 17.5mm
• Product Net Depth / Length: 69mm
• Product Net Height: 88mm
• Product Net Weight: 0.125 kg (approx)

Specification

• ABB miniature circuit breaker (MCB) automatically switches off electrical circuit during an abnormal condition of the network means in overload condition as well as faulty condition.
• Nowadays we usean MCB in low voltage electrical network instead of a fuse.
• The fuse maynot sense it but the miniature circuit breaker does it in a more reliable way.
• MCB is much more sensitive to over-current than fuse.
• Handling an MCB is electrically safer than a fuse.
• Quick restoration of supply is possible in case of a fuse as because fuses must be re-wirable or replaced for restoring the supply.
• Restoration is easily possible by just switching it ON.
• That is equipped with finger protected connection terminals.
• These are used in industrial, commercial, domestic and in different public places.
